Product Description

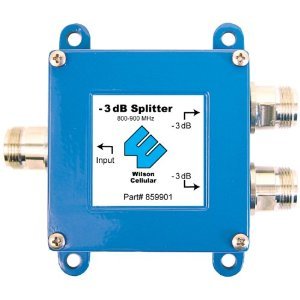

Wilson Two-Way Power Dividers 800 MHz 2 Way Splitter . Model # 859901. For use in signal distribution systems to split the amplified signal to up to 4 antennas with minimal signal loss. Weatherproof case for indoor or outdoor use. Our standard units are offered with N/Female connectors and are capable of handling 10W of power into a matched load. These units are ideal for in-building applications that require the combining or dividing of RF to accommodate multiple antenna locations. This 2-way splitter allows you to drive two interior antennas from a single amplifier/repeater. Because you are splitting the signal each antenna will receive approximately 1/2 of the signal which equates to about 70% of the coverage distance when compared to driving a single antenna.. Allows you to drive two interior antennas (up to 4 using multiple splitters) with a single amplifier/repeater ; Specifications:. Split 2-Way Frequency (MHz) 800 Isolation (dB) Description 2 Way Splitter Connectors N Female Size (in.) 4"x 4" x 1" Loss (dB) 3.0;
- 800 MHz band (Cellular & iDEN)
- Equal amounts of signal sent to two antennas for similarly sized areas
- Each output port loses 3 dB
- Can be wired in series (daisy-chained) to power up to four antennas
- N-Female Connectors
