AIR802 Yagi Antenna for Cellular (GSM) 806-960 MHz

More Pictures

AIR802 Yagi Antenna for Cellular (GSM) 806-960 MHz Customer Rating : List Price : Price : $43.95 Compare prices or Check available PROMOTIONS

Product Description

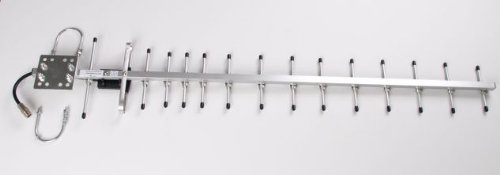

Model ANYA8X9X15 is a directional yagi style antenna designed and manufactured by AIR802 for the 806 to 960 MHz band. The applications for this antenna are the GSM cellular band and the 902 to 928 MHz ISM unlicensed band.

This antennas is built with a heavy duty aluminum alloy. The antenna includes two U-bolts for mounting. It includes a 10 inch (254 mm) cable lead with an N Jack (Female) connector. Choose one of our pre-made antennna cable assemblies to go between the antenna and repeater or amplifier.

Frequency: 806 to 960 MHz

Gain: 13 dBi

VSWR: ? 1.5

F/B Ratio: ? 18 dB

Horizontal Beam Width: 30°

Vertical Beam Width: 30°

Polarization: Vertical or Horizontal

Impedance: 50 Ohms

Maximum Input Power: 100 Watts

Lightning Protection: DC Grounded

Weight: 2.7 lbs. (1.25 kg)

Length: 39.9 inches (99 cm)

Connector: N Jack (Female)

Max. Mast Mounting Size: 1.5 to 1.9 inches (40 to 50 mm)

• 13 dBi Gain
• 806 to 960 MHz GSM Cellular Band Directional Antenna
• 902 - 928 MHz (900 MHZ) ISM Band
• 10" (254mm) Cable Lead with N-Female Connector
• DC Grounded for Added Lightning Protection
